SIX

Connecting a SIX payment terminal allows you to offer a fluid payment flow to your customers and ease the work of your cashiers.

경고

Although Worldline has acquired SIX Payment Services and both entities utilize Yomani payment terminals, their firmware differs. Terminals supplied by Worldline are, therefore, incompatible with this integration.

환경설정

전제 조건

1. Install the POS IoT Six module: Activate the POS IoT Six module module to enable the payment terminal.

   참고

   이 모듈은 POS Six 모듈을 대체합니다.

2. Connect an IoT system: A Raspberry Pi or a virtual IoT system (for Windows OS only) is required to connect a SIX payment terminal to Odoo.

결제 수단 환경설정하기

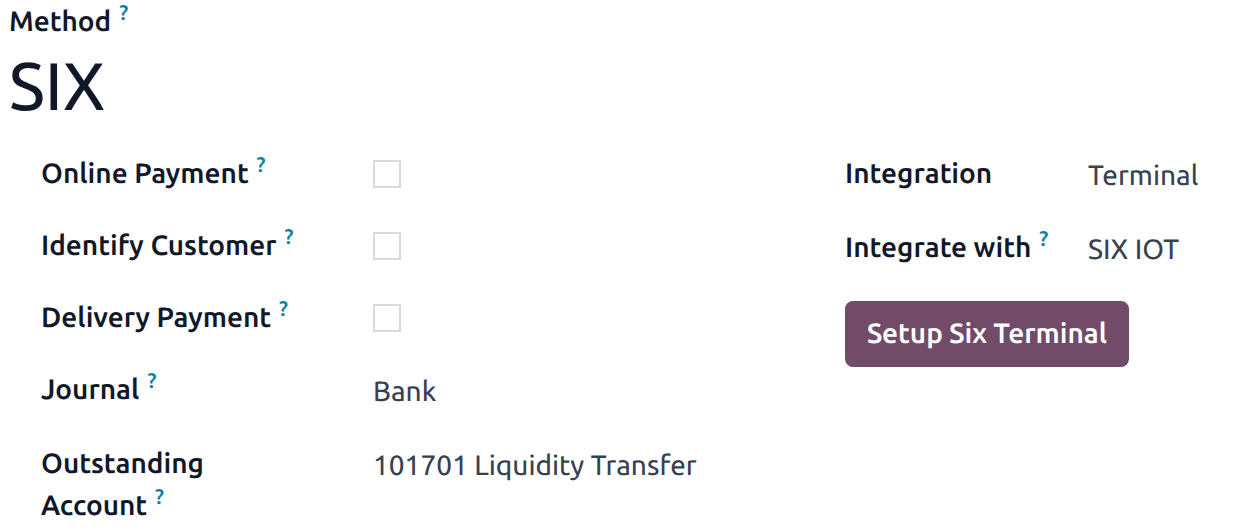

1. Enable the payment terminal in the application settings and create a payment method for SIX terminals.

2. 전표 유형을 은행 으로 설정합니다.

3. Fill in the Outstanding Account field.

4. 통합 필드에서 단말기 를 선택합니다.

5. Select SIX IOT in the Integrate with field.

6. Click Setup Six Terminal.

In the modal window,

1. Click the IoT Box field and select the IoT system from the dropdown menu.

2. Enter the Six Terminal ID (TID) provided by SIX.

3. Select the Terminal Device from dropdown menu.

4. Finally, click Add Terminal.

참고

Ensure the SIX terminal is online and connected to the same network as the IoT system.

POS에 결제 수단 연결하기

Once the payment method is created, it can be selected in the POS settings. To do so,

1. Go to the POS’ settings.

2. Add the payment method under the Payment methods field within the Payment section.
