Connect a scale

Quan trọng

In EU member states, certification is legally required to use a scale as an integrated device.

Để kết nối cân với hệ thống IoT, sử dụng cáp USB. Trong một số trường hợp, có thể cần bộ chuyển đổi từ cổng nối tiếp sang USB để hoàn tất kết nối. Nếu cân tương thích với hệ thống IoT <https://www.odoo.com/page/iot-hardware>_, không cần thiết lập bổ sung; cân sẽ tự động được nhận diện ngay khi kết nối. Nếu cân không được nhận diện, hãy khởi động lại hộp IoT hoặc khởi động lại dịch vụ IoT ảo trên Windows và cập nhật driver của cân.

Ghi chú

If the scale still does not function after updating the drivers, it might not be compatible with the Odoo IoT system. In such cases, a different scale must be used.

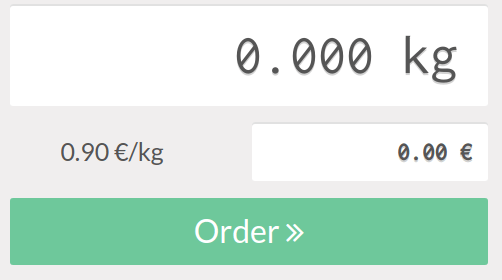

Once the scale is connected to the IoT system, configure it in the POS settings.

Xem thêm

Connect an IoT system to a POS

Ariva S scales

For Ariva S series scales (manufactured by Mettler-Toledo, LLC.) to function with IoT systems, a specific setting must be modified, and a dedicated Mettler USB-to-proprietary RJ45 cable is required.

Quan trọng

The official Mettler USB-to-RJ45 cable (Mettler part number 72256236) must be used. Contact Mettler or a partner to purchase an authentic cable. No other cable works for this configuration.

To configure the Ariva S scale for IoT system recognition, refer to page 17 of Mettler's Setup Guide for Ariva S series scales and follow these steps:

  1. Hold the >T< button for eight seconds, or until CONF appears.

  2. Press >T< until GRP 3 appears, then press >0< to confirm.

  3. At step 3.1, make sure the value is set to 1 (USB Virtual COM ports) by pressing >T< to cycle through the options.

  4. Press >0< until 3.6 (if available, otherwise skip the next step).

  5. At step 3.6, make sure the value is set to 3 (8217 Mettler-Toledo (WO)) by pressing >T< to cycle through the options.

  6. Press >0< (multiple times if necessary) until GRP 4 appears.

  7. Press >T< until EXIT appears.

    Quan trọng

    Do not make any other changes unless otherwise needed.

  8. Press >0<.

  9. Press >0< again to SAVE; the scale restarts.

  10. Reboot the IoT box or restart the Windows virtual IoT service. The scale should then appear as Toledo 8217, as opposed to the previous display, where it appeared as Adam Equipment Serial.
