Online Editor¶
Overview¶
The online editor allows you to edit the source code of your builds from a web browser. It also gives you the possibility to open terminals, Python consoles, Odoo Shell consoles and Notebooks.
You can access the editor of a build through the branches tabs, the builds dropdown menu or by adding /odoo-sh/editor to your build domain name (e.g. https://odoo-addons-master-1.dev.odoo.com/odoo-sh/editor).
Edit the source code¶
The working directory is composed of the following folders:
.
├── home
│ └── odoo
│ ├── src
│ │ ├── odoo Odoo Community source code
│ │ │ └── odoo-bin Odoo server executable
│ │ ├── enterprise Odoo Enterprise source code
│ │ ├── themes Odoo Themes source code
│ │ └── user Your repository branch source code
│ ├── repositories The Git repositories used by your project
│ ├── data
│ │ ├── filestore database attachments, as well as the files of binary fields
│ │ └── sessions visitors and users sessions
│ └── logs
│ ├── install.log Database installation logs
│ ├── odoo.log Running server logs
│ ├── update.log Database updates logs
│ └── pip.log Python packages installation logs
You can edit the source code (files under /src) in development and staging builds.
Примітка
Your changes won’t be propagated to a new build, you must commit them in your source code if you want to make them persist.
For production builds, the source code is read-only, because applying local changes on a production server is not a good practice.
The source code of your Github repository is located under /src/user,
The source code of Odoo is located under
/src/odoo (odoo/odoo),
/src/enterprise (odoo/enterprise),
/src/themes (odoo/design-themes).
To open a file in the editor, just double-click on it in the file browser panel on the left.
You can then begin to make your changes. You can save your changes with the menu
or by hitting the Ctrl+S shortcut.If you save a Python file which is under your Odoo server addons path, Odoo will detect it and reload automatically so your changes are reflected immediately, without having to restart the server manually.
However, if the change is a data stored in database, such as the label of a field, or a view, you have to update the according module to apply the change. You can update the module of the currently opened file by using the menu
. Note that the file considered as currently opened is the file focused in the text editor, not the file highlighted in the file browser.You can also open a terminal and execute the command:
$ odoo-bin -u <comma-separated module names> --stop-after-init
Commit & Push your changes¶
You have the possibility to commit and push your changes to your Github repository.
Open a terminal (
),Change the directory to ~/src/user using
cd ~/src/user
,Stage your changes using
git add
,Commit your changes using
git commit
,Push your changes using
git push https HEAD:<branch>
.
In this last command,
https is the name of your HTTPS Github remote repository (e.g. https://github.com/username/repository.git),
HEAD is the reference to the latest revision you committed,
<branch> must be replaced by the name of the branch to which you want to push the changes, most-likely the current branch if you work in a development build.
Примітка
The SSH Github remote is not used because your SSH private key
is not hosted in your build containers (for obvious security concerns)
nor forwarded through an SSH Agent (as you access this editor through a web browser)
and you therefore cannot authenticate yourself to Github using SSH.
You have to use the HTTPS remote of your Github repository to push your changes,
which is added automatically named as https in your Git remotes.
You will be prompted to enter your Github username and password.
If you activated the two-factor authentication on Github,
you can create a
personal access token
and use it as password. Granting the repo
permission suffices.
Примітка
The Git source folder ~/src/user is not checked out on a branch but rather on a detached revision: This is because builds work on specific revisions rather than branches. In other words, this means you can have multiple builds on the same branch, but on different revisions.
Once your changes are pushed, according to your branch push behavior, a new build may be created. You can continue to work in the editor you pushed from, as it will have the same revision as the new build that was created, but always make sure to be in an editor of a build using the latest revision of your branch.
Consoles¶
You can open Python consoles, which are IPython interactive shells. One of the most interesting addition to use a Python console rather than a IPython shell within a terminal is the rich display capabilities. Thanks to this, you will be able to display objects in HTML.

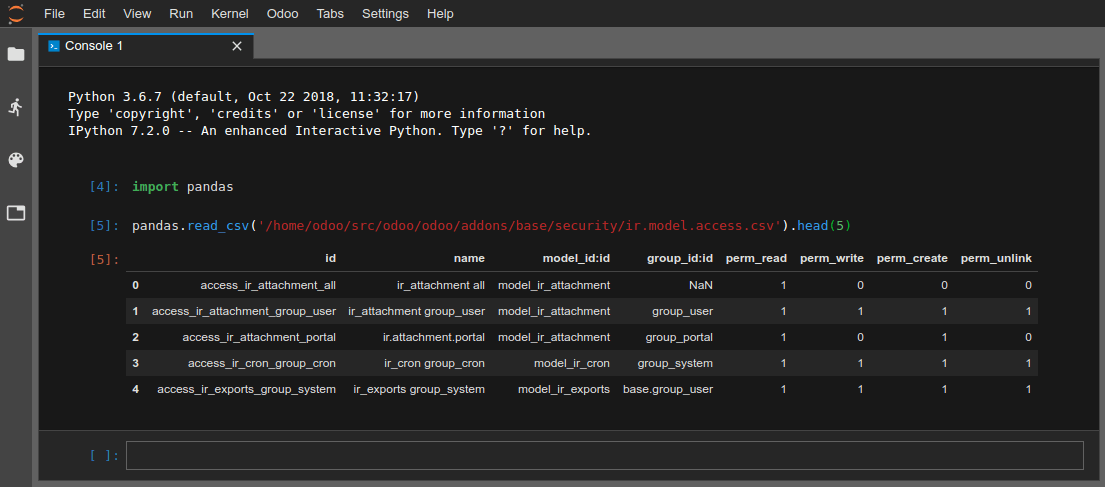

You can for instance display cells of a CSV file using pandas.
You can also open an Odoo Shell console to play around with the Odoo registry and model methods of your database. You can also directly read or write on your records.
Попередження
In an Odoo Console, transactions are automatically committed. This means, for instance, that changes in records are applied effectively in the database. If you change the name of a user, the name of the user is changed in your database as well. You therefore should use Odoo consoles carefully on production databases.
You can use env to invoke models of your database registry, e.g. env['res.users']
.
env['res.users'].search_read([], ['name', 'email', 'login'])
[{'id': 2,
'login': 'admin',
'name': 'Administrator',
'email': 'admin@example.com'}]
The class Pretty
gives you the possibility
to easily display lists and dicts in a pretty way, using the
rich display
mentioned above.
You can also use pandas to display graphs.
