Common Structure

View objects expose a number of fields, they are optional unless specified otherwise.

name (mandatory)
only useful as a mnemonic/description of the view when looking for one in a list of some sort
model
the model linked to the view, if applicable (it doesn't for QWeb views)
priority

client programs can request views by id, or by (model, type). For the latter, all the views for the right type and model will be searched, and the one with the lowest priority number will be returned (it is the "default view").

priority also defines the order of application during view inheritance

arch
the description of the view's layout
groups_id
Many2many field to the groups allowed to view/use the current view
inherit_id
the current view's parent view, see Inheritance, unset by default
mode
inheritance mode, see Inheritance. If inherit_id is unset the mode can only be primary. If inherit_id is set, extension by default but can be explicitly set to primary
application
website feature defining togglable views. By default, views are always applied

Inheritance

View matching

  • if a view is requested by (model, type), the view with the right model and type, mode=primary and the lowest priority is matched
  • when a view is requested by id, if its mode is not primary its closest parent with mode primary is matched

View resolution

Resolution generates the final arch for a requested/matched primary view:

  1. if the view has a parent, the parent is fully resolved then the current view's inheritance specs are applied
  2. if the view has no parent, its arch is used as-is
  3. the current view's children with mode extension are looked up and their inheritance specs are applied depth-first (a child view is applied, then its children, then its siblings)

The result of applying children views yields the final arch

Inheritance specs

There are three types of inheritance specs:

  • An xpath element with an expr attribute. expr is an XPath expression2 applied to the current arch, the first node it finds is the match
  • a field element with a name attribute, matches the first field with the same name
  • any other element, the first element with the same name and identical attributes (ignoring position) is matched

The inheritance spec may have an optional position attribute specifying how the matched node should be altered:

inside (default)
the content of the inheritance spec is appended to the matched node
replace
the content of the inheritance spec replaces the matched node
after
the content of the inheritance spec is added to the matched node's parent, after the matched node
before
the content of the inheritance spec is added to the matched node's parent, before the matched node
attributes

the content of the inheritance spec should be attribute elements with a name attribute and an optional body:

  • if the attribute element has a body, a new attributed named after its name is created on the matched node with the attribute element's text as value
  • if the attribute element has no body, the attribute named after its name is removed from the matched node. If no such attribute exists, an error is raised

A view's specs are applied sequentially.

Lists

The root element of list views is <tree>3. The list view's root can have the following attributes:

editable

by default, selecting a list view's row opens the corresponding form view. The editable attributes makes the list view itself editable in-place.

Valid values are top and bottom, making new records appear respectively at the top or bottom of the list.

The architecture for the inline form view is derived from the list view. Most attributes valid on a form view's fields and buttons are thus accepted by list views although they may not have any meaning if the list view is non-editable

default_order

overrides the ordering of the view, replacing the model's default order. The value is a comma-separated list of fields, postfixed by desc to sort in reverse order:

<tree default_order="sequence,name desc">
colors

allows changing the color of a row's text based on the corresponding record's attributes.

Defined as a mapping of colors to Python expressions. Values are of the form: color:expr[;...]. For each record, pairs are tested in order, the expression is evaluated for the record and if true the corresponding color is applied to the row. If no color matches, uses the default text color (black).

  • color can be any valid CSS color unit.
  • expr should be a Python expression evaluated with the current record's attributes as context values. Other context values are uid (the id of the current user) and current_date (the current date as a string of the form yyyy-MM-dd)
fonts

allows changing a row's font style based on the corresponding record's attributes.

The format is the same as for color, but the color of each pair is replaced by bold, italic or underline, the expression evaluating to true will apply the corresponding style to the row's text. Contrary to colors, multiple pairs can match each record

create, edit, delete
allows disabling the corresponding action in the view by setting the corresponding attribute to false
on_write

only makes sense on an editable list. Should be the name of a method on the list's model. The method will be called with the id of a record after having created or edited that record (in database).

The method should return a list of ids of other records to load or update.

string

alternative translatable label for the view

Deprecated since version 8.0: not displayed anymore

Possible children elements of the list view are:

button

displays a button in a list cell

icon
icon to use to display the button
string
  • if there is no icon, the button's text
  • if there is an icon, alt text for the icon
type

type of button, indicates how it clicking it affects Odoo:

workflow (default)
sends a signal to a workflow. The button's name is the workflow signal, the row's record is passed as argument to the signal
object
call a method on the list's model. The button's name is the method, which is called with the current row's record id and the current context.
action
load an execute an ir.actions, the button's name is the database id of the action. The context is expanded with the list's model (as active_model), the current row's record (active_id) and all the records currently loaded in the list (active_ids, may be just a subset of the database records matching the current search)
name
see type
args
see type
attrs

dynamic attributes based on record values.

A mapping of attributes to domains, domains are evaluated in the context of the current row's record, if True the corresponding attribute is set on the cell.

Possible attributes are invisible (hides the button) and readonly (disables the button but still shows it)

states

shorthand for invisible attrs: a list of states, comma separated, requires that the model has a state field and that it is used in the view.

Makes the button invisible if the record is not in one of the listed states

context
merged into the view's context when performing the button's Odoo call
confirm
confirmation message to display (and for the user to accept) before performing the button's Odoo call
field

defines a column where the corresponding field should be displayed for each record. Can use the following attributes:

name
the name of the field to display in the current model. A given name can only be used once per view
string
the title of the field's column (by default, uses the string of the model's field)
invisible
fetches and stores the field, but doesn't display the column in the table. Necessary for fields which shouldn't be displayed but are used by e.g. @colors
groups
lists the groups which should be able to see the field
widget

alternate representations for a field's display. Possible list view values are:

progressbar
displays float fields as a progress bar.
many2onebutton
replaces the m2o field's value by a checkmark if the field is filled, and a cross if it is not
handle
for sequence fields, instead of displaying the field's value just displays a dra&drop icon
sum, avg
displays the corresponding aggregate at the bottom of the column. The aggregation is only computed on currently displayed records. The aggregation operation must match the corresponding field's group_operator
attrs
dynamic attributes based on record values. Only effects the current field, so e.g. invisible will hide the field but leave the same field of other records visible, it will not hide the column itself

Forms

Form views are used to display the data from a single record. Their root element is <form>. They are composed of regular HTML with additional structural and semantic components.

Structural components

Structural components provide structure or "visual" features with little logic. They are used as elements or sets of elements in form views.

notebook

defines a tabbed section. Each tab is defined through a page child element. Pages can have the following attributes:

string (required)
the title of the tab
accesskey
an HTML accesskey
attrs
standard dynamic attributes based on record values
group

used to define column layouts in forms. By default, groups define 2 columns and most direct children of groups take a single column. field direct children of groups display a label by default, and the label and the field itself have a colspan of 1 each.

The number of columns in a group can be customized using the col attribute, the number of columns taken by an element can be customized using colspan.

Children are laid out horizontally (tries to fill the next column before changing row).

Groups can have a string attribute, which is displayed as the group's title

newline
only useful within group elements, ends the current row early and immediately switches to a new row (without filling any remaining column beforehand)
separator
small horizontal spacing, with a string attribute behaves as a section title
sheet
can be used as a direct child to form for a narrower and more responsive form layout
header
combined with sheet, provides a full-width location above the sheet itself, generally used to display workflow buttons and status widgets

Semantic components

Semantic components tie into and allow interaction with the Odoo system. Available semantic components are:

button
call into the Odoo system, similar to list view buttons
field

renders (and allow edition of, possibly) a single field of the current record. Possible attributes are:

name (mandatory)
the name of the field to render
widget
fields have a default rendering based on their type (e.g. Char, Many2one). The widget attributes allows using a different rendering method and context.
options
JSON object specifying configuration option for the field's widget (including default widgets)
class

HTML class to set on the generated element, common field classes are:

oe_inline
prevent the usual line break following fields
oe_left, oe_right
floats the field to the corresponding direction
oe_read_only, oe_edit_only
only displays the field in the corresponding form mode
oe_no_button
avoids displaying the navigation button in a Many2one
oe_avatar
for image fields, displays images as "avatar" (square, 90x90 maximum size, some image decorations)
groups
only displays the field for specific users
on_change

calls the specified method when this field's value is edited, can generate update other fields or display warnings for the user

Deprecated since version 8.0: Use openerp.api.onchange() on the model

attrs
dynamic meta-parameters based on record values
domain
for relational fields only, filters to apply when displaying existing records for selection
context
for relational fields only, context to pass when fetching possible values
readonly
display the field in both readonly and edition mode, but never make it editable
required
generates an error and prevents saving the record if the field doesn't have a value
nolabel
don't automatically display the field's label, only makes sense if the field is a direct child of a group element
placeholder
help message to display in empty fields. Can replace field labels in complex forms. Should not be an example of data as users are liable to confuse placeholder text with filled fields
mode
for One2many, display mode (view type) to use for the field's linked records. One of tree, form, kanban or graph. The default is tree (a list display)
help
tooltip displayed for users when hovering the field or its label
filename
for binary fields, name of the related field providing the name of the file
password
indicates that a Char field stores a password and that its data shouldn't be displayed

Business Views guidelines

Business views are targeted at regular users, not advanced users. Examples are: Opportunities, Products, Partners, Tasks, Projects, etc.

In general, a business view is composed of

  1. a status bar on top (with technical or business flow),
  2. a sheet in the middle (the form itself),
  3. a bottom part with History and Comments.

Technically, the new form views are structured as follows in XML:

<form>
    <header> ... content of the status bar  ... </header>
    <sheet>  ... content of the sheet       ... </sheet>
    <div class="oe_chatter"> ... content of the bottom part ... </div>
</form>

The Status Bar

The purpose of the status bar is to show the status of the current record and the action buttons.

The Buttons

The order of buttons follows the business flow. For instance, in a sale order, the logical steps are:

  1. Send the quotation
  2. Confirm the quotation
  3. Create the final invoice
  4. Send the goods

Highlighted buttons (in red by default) emphasize the logical next step, to help the user. It is usually the first active button. On the other hand, cancel buttons must remain grey (normal). For instance, in Invoice the button Refund must never be red.

Technically, buttons are highlighted by adding the class "oe_highlight":

<button class="oe_highlight" name="..." type="..." states="..."/>
The Status

Uses the statusbar widget, and shows the current state in red. States common to all flows (for instance, a sale order begins as a quotation, then we send it, then it becomes a full sale order, and finally it is done) should be visible at all times but exceptions or states depending on particular sub-flow should only be visible when current.

The states are shown following the order used in the field (the list in a selection field, etc). States that are always visible are specified with the attribute statusbar_visible.

<field name="state" widget="statusbar"
    statusbar_visible="draft,sent,progress,invoiced,done" />

The Sheet

All business views should look like a printed sheet:

  1. Elements inside a <form> or <page> do not define groups, elements inside them are laid out according to normal HTML rules. They content can be explicitly grouped using <group> or regular <div> elements.
  2. By default, the element <group> defines two columns inside, unless an attribute col="n" is used. The columns have the same width (1/n th of the group's width). Use a <group> element to produce a column of fields.
  3. To give a title to a section, add a string attribute to a <group> element:

    <group string="Time-sensitive operations">


    this replaces the former use of <separator string="XXX"/>.

  4. The <field> element does not produce a label, except as direct children of a <group> element1. Use <label for="field_name> to produce a label of a field.
Sheet Headers

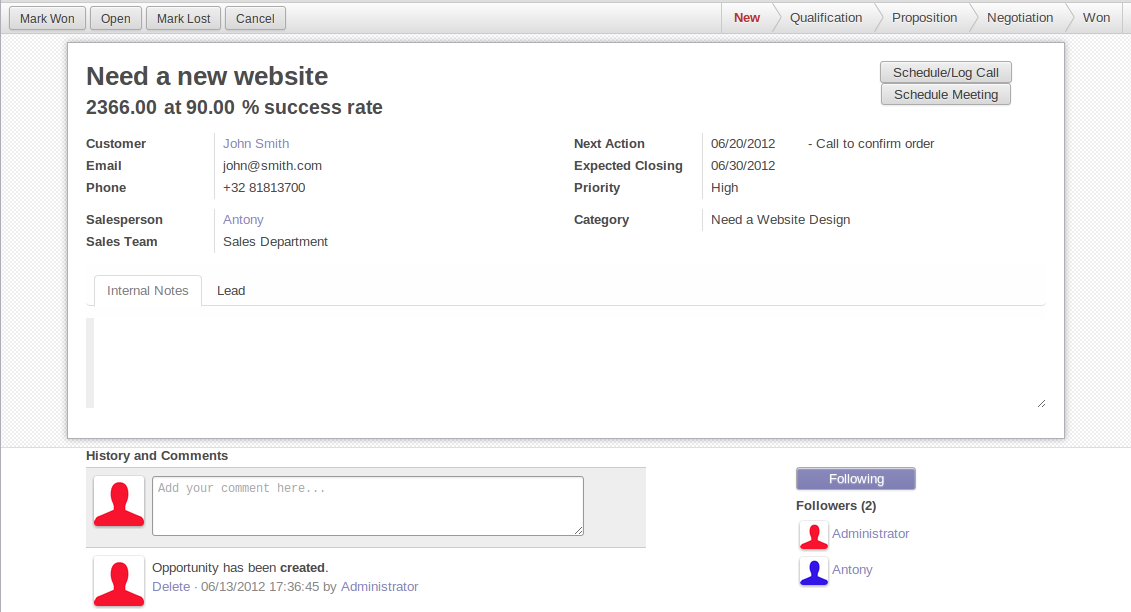

Some sheets have headers with one or more fields, and the labels of those fields are only shown in edit mode.

View modeEdit mode

Use HTML text, <div>, <h1>, <h2>… to produce nice headers, and <label> with the class oe_edit_only to only display the field's label in edit mode. The class oe_inline will make fields inline (instead of blocks): content following the field will be displayed on the same line rather than on the line below it. The form above is produced by the following XML:

<label for="name" class="oe_edit_only"/>
<h1><field name="name"/></h1>

<label for="planned_revenue" class="oe_edit_only"/>
<h2>
    <field name="planned_revenue" class="oe_inline"/>
    <field name="company_currency" class="oe_inline oe_edit_only"/> at
    <field name="probability" class="oe_inline"/> % success rate
</h2>
Button Box

Many relevant actions or links can be displayed in the form. For example, in Opportunity form, the actions "Schedule a Call" and "Schedule a Meeting" have an important place in the use of the CRM. Instead of placing them in the "More" menu, put them directly in the sheet as buttons (on the top right) to make them more visible and more easily accessible.

Technically, the buttons are placed inside a <div> to group them as a block on the right-hand side of the sheet.

<div class="oe_button_box oe_right">
    <button string="Schedule/Log Call" name="..." type="action"/>
    <button string="Schedule Meeting" name="action_makeMeeting" type="object"/>
</div>
Groups and Titles

A column of fields is now produced with a <group> element, with an optional title.

<group string="Payment Options">
    <field name="writeoff_amount"/>
    <field name="payment_option"/>
</group>

It is recommended to have two columns of fields on the form. For this, simply put the <group> elements that contain the fields inside a top-level <group> element.

To make view extension simpler, it is recommended to put a name attribute on <group> elements, so new fields can easily be added at the right place.

Special Case: Subtotals

Some classes are defined to render subtotals like in invoice forms:

<group class="oe_subtotal_footer">
    <field name="amount_untaxed"/>
    <field name="amount_tax"/>
    <field name="amount_total" class="oe_subtotal_footer_separator"/>
    <field name="residual" style="margin-top: 10px"/>
</group>
Placeholders and Inline Fields

Sometimes field labels make the form too complex. One can omit field labels, and instead put a placeholder inside the field. The placeholder text is visible only when the field is empty. The placeholder should tell what to place inside the field, it must not be an example as they are often confused with filled data.

One can also group fields together by rendering them "inline" inside an explicit block element like <div>. This allows grouping semantically related fields as if they were a single (composite) fields.

The following example, taken from the Leads form, shows both placeholders and inline fields (zip and city).

Edit modeView mode
<group>
    <label for="street" string="Address"/>
    <div>
        <field name="street" placeholder="Street..."/>
        <field name="street2"/>
        <div>
            <field name="zip" class="oe_inline" placeholder="ZIP"/>
            <field name="city" class="oe_inline" placeholder="City"/>
        </div>
        <field name="state_id" placeholder="State"/>
        <field name="country_id" placeholder="Country"/>
    </div>
</group>
Images

Images, like avatars, should be displayed on the right of the sheet. The product form looks like:

The form above contains a <sheet> element that starts with:

<field name="product_image" widget="image" class="oe_avatar oe_right"/>
Tags

Most Many2many fields, like categories, are better rendered as a list of tags. Use the widget many2many_tags for this:

<field name="category_id" widget="many2many_tags"/>

Configuration forms guidelines

Examples of configuration forms: Stages, Leave Type, etc. This concerns all menu items under Configuration of each application (like Sales/Configuration).

  1. no header (because no state, no workflow, no button)
  2. no sheet

Dialog forms guidelines

Example: "Schedule a Call" from an opportunity.

  1. avoid separators (the title is already in the popup title bar, so another separator is not relevant)
  2. avoid cancel buttons (user generally close the popup window to get the same effect)
  3. action buttons must be highlighted (red)
  4. when there is a text area, use a placeholder instead of a label or a separator
  5. like in regular form views, put buttons in the <header> element

Configuration Wizards guidelines

Example: Settings / Configuration / Sales.

  1. always in line (no popup)
  2. no sheet
  3. keep the cancel button (users cannot close the window)
  4. the button "Apply" must be red

Graphs

The graph view is used to visualize aggregations over a number of records or record groups. Its root element is <graph> which can take the following attributes:

type
one of bar (default), pie, line and pivot, the type of graph to use (pivot technically isn't a graph type, it displays the aggregation as a pivot table)
stacked
only used for bar charts. If present and set to True, stacks bars within a group

The only allowed element within a graph view is field which can have the following attributes:

name (required)
the name of a field to use in a graph view. If used for grouping (rather than aggregating)
type

indicates whether the field should be used as a grouping criteria or as an aggregated value within a group. Possible values are:

row (default)
groups by the specified field. All graph types support at least one level of grouping, some may support more. For pivot tables, each group gets its own row.
col
only used by pivot tables, creates column-wise groups
measure
field to aggregate within a group
interval
on date and datetime fields, groups by the specified interval (day, week, month, quarter or year) instead of grouping on the specific datetime (fixed second resolution) or date (fixed day resolution).

Kanban

The kanban view is a kanban board visualisation: it displays records as "cards", halfway between a list view and a non-editable form view. Records may be grouped in columns for use in workflow visualisation or manipulation (e.g. tasks or work-progress management), or ungrouped (used simply to visualize records).

The root element of the Kanban view is <kanban>, it can use the following attributes:

default_group_by
whether the kanban view should be grouped if no grouping is specified via the action or the current search. Should be the name of the field to group by when no grouping is otherwise specified
default_order
cards sorting order used if the user has not already sorted the records (via the list view)
class
adds HTML classes to the root HTML element of the Kanban view
quick_create

whether it should be possible to create records without switching to the form view. By default, quick_create is enabled when the Kanban view is grouped, and disabled when not.

Set to true to always enable it, and to false to always disable it.

Possible children of the view element are:

field

declares fields to aggregate or to use in kanban logic. If the field is simply displayed in the kanban view, it does not need to be pre-declared.

Possible attributes are:

name (required)
the name of the field to fetch
sum, avg, min, max, count
displays the corresponding aggregation at the top of a kanban column, the field's value is the label of the aggregation (a string). Only one aggregate operation per field is supported.
templates

defines a list of QWeb templates. Cards definition may be split into multiple templates for clarity, but kanban views must define at least one root template kanban-box, which will be rendered once for each record.

The kanban view uses mostly-standard javascript qweb and provides the following context variables:

instance
the current Web Client instance
widget
the current KanbanRecord(), can be used to fetch some meta-information. These methods are also available directly in the template context and don't need to be accessed via widget
record
an object with all the requested fields as its attributes. Each field has two attributes value and raw_value, the former is formatted according to current user parameters, the latter is the direct value from a read() (except for date and datetime fields that are formatted according to user's locale)
read_only_mode

self-explanatory

buttons and fields

While most of the Kanban templates are standard QWeb, the Kanban view processes field, button and a elements specially:

  • by default fields are replaced by their formatted value, unless they match specific kanban view widgets
  • buttons and links with a type attribute become perform Odoo-related operations rather than their standard HTML function. Possible types are:

    action, object
    standard behavior for Odoo buttons, most attributes relevant to standard Odoo buttons can be used.
    open
    opens the card's record in the form view in read-only mode
    edit
    opens the card's record in the form view in editable mode
    delete
    deletes the card's record and removes the card

Javascript API

class KanbanRecord()

Widget() handling the rendering of a single record to a card. Available within its own rendering as widget in the template context.

kanban_color(raw_value)

Converts a color segmentation value to a kanban color class oe_kanban_color_color_index. The built-in CSS provides classes up to a color_index of 9.

kanban_getcolor(raw_value)

Converts a color segmentation value to a color index (between 0 and 9 by default). Color segmentation values can be either numbers or strings.

kanban_image(model, field, id[, cache][, options])

Generates the URL to the specified field as an image access.

Arguments
  • model (String) -- model hosting the image
  • field (String) -- name of the field holding the image data
  • id -- identifier of the record contaning the image to display
  • cache (Number) -- caching duration (in seconds) of the browser default should be overridden. 0 disables caching entirely
Returns
an image URL
kanban_text_ellipsis(string[, size=160])

clips text beyond the specified size and appends an ellipsis to it. Can be used to display the initial part of potentially very long fields (e.g. descriptions) without the risk of unwieldy cards

Calendar

Calendar views display records as events in a daily, weekly or monthly calendar. Their root element is <calendar>. Available attributes on the calendar view are:

date_start (required)
name of the record's field holding the start date for the event
date_stop
name of the record's field holding the end date for the event, if date_stop is provided records become movable (via drag and drop) directly in the calendar
date_delay
alternative to date_stop, provides the duration of the event instead of its end date
color
name of a record field to use for color segmentation. Records in the same color segment are allocated the same highlight color in the calendar, colors are allocated semi-randomly.
event_open_popup
opens the event in a dialog instead of switching to the form view, enabled by default
quick_add
enables quick-event creation on click: only asks the user for a name and tries to create a new event with just that and the clicked event time. Falls back to a full form dialog if the quick creation fails
display
format string for event display, field names should be within brackets [ and ]
all_day
name of a boolean field on the record indicating whether the corresponding event is flagged as day-long (and duration is irrelevant)

Gantt

Gantt views appropriately display Gantt charts (for scheduling).

The root element of gantt views is <gantt/>, it has no children but can take the following attributes:

date_start (required)
name of the field providing the start datetime of the event for each record.
date_stop

name of the field providing the end duration of the event for each record. Can be replaced by date_delay. One (and only one) of date_stop and date_delay must be provided.

If the field is False for a record, it's assumed to be a "point event" and the end date will be set to the start date

date_delay
name of the field providing the duration of the event
progress
name of a field providing the completion percentage for the record's event, between 0 and 100
default_group_by
name of a field to group tasks by

Diagram

The diagram view can be used to display directed graphs of records. The root element is <diagram> and takes no attributes.

Possible children of the diagram view are:

node (required, 1)

Defines the nodes of the graph. Its attributes are:

object
the node's Odoo model
shape
conditional shape mapping similar to colors and fonts in the list view. The only valid shape is rectangle (the default shape is an ellipsis)
bgcolor
same as shape, but conditionally maps a background color for nodes. The default background color is white, the only valid alternative is grey.
arrow (required, 1)

Defines the directed edges of the graph. Its attributes are:

object (required)
the edge's Odoo model
source (required)
Many2one field of the edge's model pointing to the edge's source node record
destination (required)
Many2one field of the edge's model pointing to the edge's destination node record
label
Python list of attributes (as quoted strings). The corresponding attributes's values will be concatenated and displayed as the edge's label
label
Explanatory note for the diagram, the string attribute defines the note's content. Each label is output as a paragraph in the diagram header, easily visible but without any special emphasis.

Search defaults

Search fields and filters can be configured through the action's context using search_default_name keys. For fields, the value should be the value to set in the field, for filters it's a boolean value. For instance, assuming foo is a field and bar is a filter an action context of:

{
  'search_default_foo': 'acro',
  'search_default_bar': 1
}

will automatically enable the bar filter and search the foo field for acro.

QWeb

QWeb views are standard QWeb templates inside a view's arch. They don't have a specific root element.

A QWeb view can only contain a single template4, and the template's name must match the view's complete (including module name) external id.

template should be used as a shortcut to define QWeb views.

[1] for backwards compatibility reasons
[2] an extension function is added for simpler matching in QWeb views: hasclass(*classes) matches if the context node has all the specified classes
[3] for historical reasons, it has its origin in tree-type views later repurposed to a more table/list-type display
[4] or no template if it's an inherited view, then it should only contain xpath elements
