Printable delivery PDFs

Automatically print delivery-related PDFs documents and labels in Odoo, containing package recipient details, contents, or handling instructions.

The following PDFs can be configured to print upon validating an Inventory operation (e.g. receipt, picking, delivery orders, quality checks):

  1. Delivery slip

  2. Return slip

  3. Product labels of items in the order

  4. Lot and serial number labels

  5. Carrier labels

  6. Export documents

  7. Package content

  8. Package label

To automatically print these forms, navigate to Inventory app ‣ Configuration ‣ Operations Types, and select the desired operation type.

In the Hardware tab, tick each of the desired options available in the Print on Validation section to download the PDF of those selected documents automatically after validating the Operation Type. For details on what each of the checkbox options do, jump to the related section.

Show the *Print on Validation* option in the "Pick" *Operation Type*.

Delivery slip

A delivery slip contains recipient and package details, usually placed inside (or attached to) the package.

After enabling the Delivery Slip setting in the Hardware tab configuration options, clicking Validate on the desired operation type downloads a PDF of the delivery slip.

The delivery slip shows products, quantities, the delivery order reference number, and the total order weight.

Example delivery slip.

Phiếu trả hàng

Print a return slip to include in a delivery for customer return packages. It identifies the return, links to the sales order, and includes item details and customer information. It can also include specific return instructions for the customer.

After enabling the Return Slip setting in the Hardware tab configuration options, clicking Validate on the desired operation type downloads a PDF of the return slip.

The return slip displays the company's return address, along with barcodes for both the order and the return operation.

Example return slip.

Product labels

Print product labels to affix to items in an order, providing essential information, such as product name, barcode, and price.

After navigating to the intended operation type (Inventory app ‣ Configuration ‣ Operations Types), in the Hardware tab, tick the Product Labels option.

Doing so makes the Print label as: drop-down menu visible, where each product label can be printed as:

  • 2 x 7 with price: PDF displays product name, barcode, and price, fitting two rows and seven columns of product labels per page.

    Example 2 x 7 with price.
  • 4 x 7 with price: displays product name, barcode, and price, fitting four rows and seven columns of product labels per page.

    Example 4 x 7 with price.
  • 4 x 12: displays product name and barcode. Fits four rows and twelve columns of product labels per page.

    Example 4 x 12.
  • 4 x 12 with price: displays product name, barcode, and price. Fits four rows and twelve columns of product labels per page.

  • ZPL Labels: prints labels in the Zebra Programming Language (ZPL) containing the product name and barcode. Readable for Zebra printers to automatically print labels.

  • ZPL Labels with price: prints labels in the ZPL containing the product name, barcode, and price.

Ghi chú

Product labels can be manually printed from any delivery order, by clicking the Print Labels button.

Nhãn số lô/sê-ri

Print lot/SN labels to affix to items in an order, providing essential information, such as product name, lot or serial number, and the barcode.

To automatically print this PDF, navigate to the intended operation type's options page (Inventory app ‣ Configuration ‣ Operations Types). Then, in the Hardware tab, tick the Lot/SN Labels option.

Doing so makes the Print label as: drop-down menu visible, where each product label can be printed as:

  • 4 x 12 - One per lot/SN: PDF with labels for unique lot/serial numbers in the order, including product name, lot/serial number, and barcode. Fits four rows and twelve columns per page.

    Order with only one unique set of lot/serial numbers.

    Labels for an order with only one unique set of lot/serial numbers.

  • 4 x 12 - One per unit: PDF with labels matching the quantity of items, displaying the product name, lot/serial number, and barcode. Fits four rows and twelve columns per page.

  • ZPL Labels - One per lot/SN: prints labels in ZPL, containing the product name, lot/serial number, and barcode.

  • ZPL Labels - One per unit: prints labels with the quantity of items in ZPL, containing the product name, lot/serial number, and barcode.

Carrier labels

To automatically print a carrier label with the recipient address, tracking number, and carrier details for specific third-party shipping carriers, complete the following setup:

  1. Tick the Carrier Labels checkbox in the operation type settings.

  2. Connect a printer to Odoo's IoT app.

  3. Assign the carrier label to the printer.

  4. Configure the shipping method's label type.

Assign printer

Refer to the Connect a printer documentation for details on connecting a printer to Odoo's IoT app. Upon completion, assign the carrier label to the printer, by navigating to IoT app ‣ Devices, and selecting the desired printer.

Show a list of IoT devices.

In the printer configuration form, go to the Printer Reports tab to configure the types of documents the printer automatically prints. Click Add a line to open the Add: Reports pop-up window. In the Search... bar, type Shipping, and select Shipping Labels.

Ghi chú

The Shipping Documents report is for export documents.

Show carrier label report added to the *Printer Reports*.

After adding the Shipping Labels report in the Printer Reports tab, ensure the Report Type matches the IoT-connected printer's type.

  • For laser printers, set the Report Type to PDF.

  • For Zebra printers, set the Report Type to Text.

Shipping carrier label type

Next, complete the setup for the third-party shipping connector. After that, go to Inventory app ‣ Configuration ‣ Shipping Methods, and select the desired shipping method.

On the shipping method configuration form, in the [carrier name] Configuration tab, ensure the Label Format matches the report type assigned earlier:

  • For laser printers, set the Label Format to PDF.

  • For Zebra printers, set the Label Format to ZPL2.

Show the *Label Type* field on FedEx's shipping method configuration page.

Example carrier label

After validating the operation, the carrier label is generated in the chatter, and printed using the IoT-connected printer.

Show an example carrier label for FedEx.

Carrier label for FedEx, containing the recipient address, tracking number, barcode, and other shipping information.

Export document

An export document, required by customs to ship packages from one country to another, can be automatically printed in Odoo by following these steps:

  1. Tick the Export Documents checkbox in the operation type settings.

  2. Connect a printer to Odoo's IoT app.

  3. Assign the export document to the printer.

Assign printer

Similar to the printer assignment instructions for carrier labels, after connecting a compatible printer to the Odoo IoT app, go to IoT app ‣ Devices, and select the desired printer.

In the printer configuration form, go to the Printer Reports tab, and click Add a line. In the Add: Reports pop-up window that appears, add the Shipping Documents report to assign the export document to the printer.

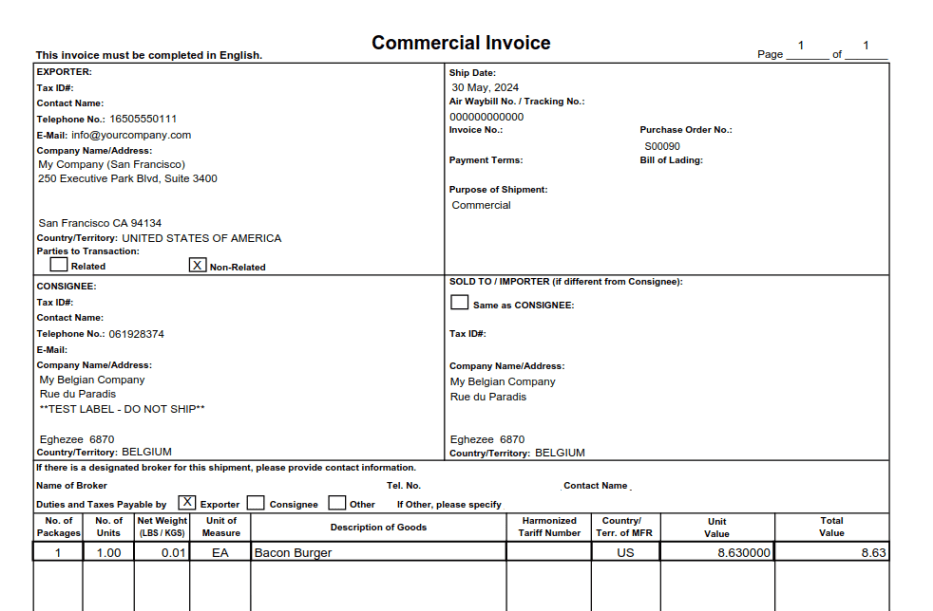

Export document for a shipment from the USA to Belgium.

Export document for a shipment from the USA to Belgium.

Package content

A package content PDF includes the package's barcode, packed date, along with a list of contained products and quantities.

To print this form automatically, go to Inventory app ‣ Configuration ‣ Operation Types, and select the desired operation type. Then, go to the Hardware tab, and tick the Package Contents checkbox.

Quan trọng

If the option is not available, enable the Packages feature, by going to Inventory app ‣ Configuration ‣ Settings, ticking the Packages checkbox, and clicking Save.

After enabling the feature in the Hardware tab, validating the operation prints a PDF of the package contents.

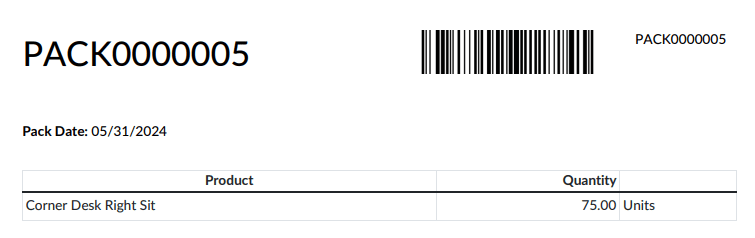

Package contents form showing the package contents, barcode, and pack date.

Package contents showing the package contents, barcode, and pack date.

Package label

A package label that shows the package's barcode and pack date can be configured to print upon clicking the Put in Pack button.

Quan trọng

The Put in Pack button is available only when the Packages feature is enabled in Inventory app ‣ Configuration ‣ Settings.

After it is enabled, the Put in Pack button is available on all inventory operations (e.g. receipt, pickings, internal transfers, delivery orders, etc.).

To automatically print the package label when the Put in Pack button is clicked, go to Inventory app ‣ Configuration ‣ Operation Types. Select the desired operation type, and tick the Package Label checkbox in the Hardware tab. Labels can be printed in PDF or ZPL file formats, as defined in the Print label as field.

PDF of package barcode and package date.
